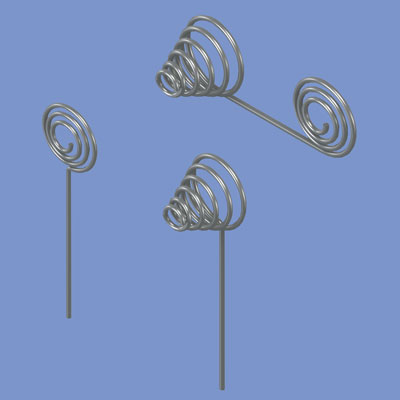

Coiled PC/Case Mount Battery Contacts

To support the increasing demands for higher energy, lower weight cylindrical battery usage, Keystone has introduced our latest coil spring contacts designed to slide-into molded cases with no wire lead, direct placement onto a PCB.

Engineered with a contact design that adjusts to variations in battery length, these contacts assure low contact resistance and dependable connectivity.

These contacts also offer the convenience of being drop in replacements for standard leaf spring contacts. Contacts can accommodate cylindrical batteries styles including A, AA, AAA and, CR2 cells virtually eliminating the need to specify brand and style.

Manufactured from .024" (.61mm) Steel Wire with Nickel Plating for superior performance in today's high tech devices.

Negative Contacts

Cat. # 243 - For A, AA, CR2 Cells

Cat. # 180 - For AAA, AAAA, N, A23, A27 Cells

Positive Contacts

Cat. # 242 - For A, AA, CR2 Cells

Cat. # 179 - For AAA, AAAA, N, A23, A27 Cells

Dual Contacts

Cat. # 244 - For AA, CR2 Cells

Cat. # 181 - For AAA Cells

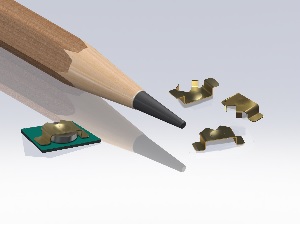

Click Here to learn more about the innovative and cost effective slide in battery contacts
